Security 1/8inch Stainless Steel Rope Mesh With Different Type Non Rusting

  • 1
  • 2

Brand Name : X MESH

Model Number : X MESH-Cable Webnet-024

Certification : ISO9001:2015

Place of Origin : Hebei P.R. China.

MOQ : 10pcs

Price : USD2.35-3.58/m2

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000m2/week

Delivery Time : 5-7days

Packaging Details : Wrapped with plastic film and wooden case packing

Product name : Stainless Steel Cable Mesh

Material : Stainless Steel 316L

Wire Rope : 2.0mm

Rope Constructions : 7 X 7

Mesh Orientation : Horizontal

Mesh Shape : Diamond

Mesh Angle : 60 Degree

Color : Silver

Feature : Environmental Protection

Application : For curtain wall

Contact Now

Security 316 Inox Cable Webnet X Tend Stainless Steel Rope Wire Mesh with Different type

Stainless Steel Cable Mesh Introduction:

Security inox cable webnet material is producing by high quality stainless steel wire cable, the stainless steel grade includes type 304, 304 L, 316 and 316L. The structures of Stainless Steel Wire Rope Fence Mesh have

super quality. The standard Stainless Steel Wire Rope Fence Mesh diameter includes 1/8", 3/32", 1/16", and 3/64",the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".

Stainless Steel Wire Rope Fence Mesh have 7 x 7 and 7 x 19. All the material for producing indoor decoration, mechanical protective cover, electrical ventilation, aquaculture and many other Stainless steel wire rope mesh are mainly used in the hotels, shopping malls, supermarkets, office,industries.

What need to know for design ?

316 grade stainless steel rope mesh is high performance cost ratio.
Heavier wire rope (d) offers higher break loading capacity.
The smaller opening (OW) of mesh cost expensive.
Border solution of mesh is necessary for installation.
Exact piece size of mesh can be manufactured.
Quality of mesh affects visual effects, using life. safety. maintenance cost etc.

Stainless Steel Cable Mesh Specification:

Material:

Stainless Steel 304 , 316 , 316L

Wire Rope:

1.2 Mm To 4.0 Mm

Rope Constructions:

7 X 7 , 7 X 19 , 1 X 19

Finished:

Ultrasonic Bath / Black Oxide

Mesh Orientation:

Horizontal , Vertical

Product Name:

Inox X-tend Cable Mesh Webnet

Mesh Shape:

Rhombus , Diamond

Application:

Staircase Security , Balustrade Infill , Railing Safety

Panel Size:

Customized In Width And Length

Mesh Angle:

60 Degree

Mesh Style:

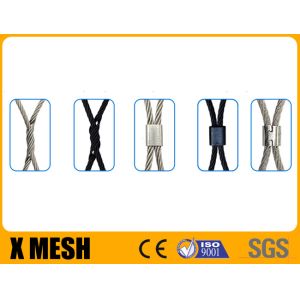

X-tend In Ferruled Type

Rope Construction

Rope Diameter

Aperture

Breaking Force

inch

mm

mm

kn

7 × 19

1/8

3.2

120 × 208

7.38

7 × 19

1/8

3.2

100 × 173

7.38

7 × 19

1/8

3.2

90 × 156

7.38

7 × 7

3/32

2.4

100 × 173

4.18

7 × 7

3/32

2.4

90 × 156

4.18

7 × 7

3/32

2.4

80 × 139

4.18

7 × 7

3/32

2.4

70 × 121

4.18

7 × 7

5/64

2.0

100 × 173

3.17

7 × 7

5/64

2.0

90 × 156

3.17

7 × 7

5/64

2.0

80 × 139

3.17

7 × 7

5/64

2.0

70 × 121

3.17

7 × 7

1/16

1.6

80 × 139

2.17

7 × 7

1/16

1.6

70 × 121

2.17

7 × 7

1/16

1.6

60 × 104

2.17

7 × 7

1/16

1.6

51 × 87

2.17

7 × 7

3/64

1.2

80 × 139

1.22

7 × 7

3/64

1.2

60 × 104

1.22

7 × 7

3/64

1.2

50 × 87

1.22

7 × 7

3/64

1.2

40 × 69

1.22

Wire rope structure
diameter(mm)
Breaking force(KN)

7*7
1.2
0.63

7*7
1.5
1.67

7*7
2.0
2.94

7*7
2.5
4.61

7*19
2.5
4.82

7*7
3.0
6.37

7*19
3.0
6.57

mesh25*43
weight

0.9kg

1.29kg

mesh30*55
weight

0.72kg

1.01kg

mesh40*69
weight

0.5kg

0.71kg

1.33kg

mesh50*87
weight

0.62kg

1.0kg

1.65kg

1.65kg

2.54kg

2.54kg

mesh60*104
weight

0.5kg

0.83kg

1.31kg

1.31kg

2.02kg

2.02kg

mesh70*121
weight

0.4kg

0.68kg

1.11kg

1.11kg

1.68kg

1.68kg

mesh80*139
weight

0.35kg

0.63kg

0.93kg

0.93kg

1.42kg

1.42kg

mesh100*175
weight

0.45kg

0.73kg

0.73kg

1.1kg

1.1kg

Stainless Steel Cable Mesh Feature:

1. Good flexibility, Anti-corrosion,Excellent visibility

2. Long service life, close to nature, green and environmental protection

Stainless Steel Cable Mesh Application:

Suspension Bridge Railing Mesh
Stainless steel rope mesh is also mainly used in the suspension bridge railing.
Helideck Mesh
Stainless steel rope mesh can ensure the safety of helicopters and passengers when it is used as the helideck mesh. It is
installed around the helicopter landing deck.
Balustrade Mesh
Stainless steel rope mesh is also used for the balustrade of stair or balcony. It can make the stair grand, beautiful and safer.
Decoration Mesh
The diamond-shaped holes make the stainless steel rope mesh have aesthetic appearance, so rope mesh can be used for decoration of
building, such as ceiling and curtain wall.
Green Wall
Stainless steel rope mesh is resistant to corrosion and rust even though it is exposed to sun directly. And it can make the green
wall with green plants. Green wall can regulate the temperature of the building and it can protect the building wall.
Aviary Netting
The mesh size and opening size of stainless steel rope mesh can be modified. So it can provide enough space and create a natural
environment for birds to make them live comfortably.
Zoo Mesh
Stainless steel rope zoo mesh has diamond-shaped openings and high strength, which can protect visitors from being damaged.
Therefore, visitors can enjoy the animals at a close distance free of danger. What's more, it can protect animals from being hurt.
Slope Protection Rope Mesh
Slope protection rope mesh has enough intercept strength to prevent the rocks from slope falling onto road, railway, expressway or
other structures. Instead, rocks will fall to the foot of slope behind the rope mesh.

Stainless Steel Cable Mesh Packing:

The rope mesh will be rolled and packed into the P.P. woven bags or wooden crates.
